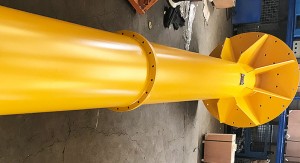

BZ Column Mounted Jib Crane

  • Crane Rotation: 360 degreez
  • Arm Length: up to 16 m
  • Rotating Speed: 0.5 r/min
  • Safe Working load: up to 16 tons
  • Hoisting Heights: up to 12 (floor to underside of boom)
  • Working Tempr: -20~+40℃
  • Travelling Speed: 20 or 30 m/min
  • Control Model: pendant control or remote

TAG:Jib Crane

0086-371-58528680

Description

BZ column mounted jib crane is rational and low-cost handling equipment which do not require any modifications to the building, and are applicable in numerous industries.

They are compact, whilst at the same time enabling loads to be moved in every direction. As an ideal companion for Overhead Cranes, they cover the workshop as a whole, increasing autonomy and efficiency of every workstation.

It is a kind of middle and small lifting and equipment and very suitable for short distance moving and workplace of crowed lift and transportations.

Features
  • 1Strong versatility
  • 2Easy to operate and maintenance
  • 3Installation with high strength bolt connection
  • 4Reasonable structure,Light self-weight, adopt to the national standards
  • 5Inexpensive handling systems doesn’t require modification of the building structure around
Advantages
  • 1High efficiency
  • 2Less power consume
  • 3Specially suitable for short distance material handling
  • 4High quality and efficiency, competitive price
Applications

BZ column mounted jib crane is widely used in manufacturing workshop, metallurgy, petroleum,petrochemicals,ports,railway,civil aviation,power station,food industry, paper making,building material, warehouses and other material handling application.
desgin Text Installation services

Technical data

pillar jib crane

Capacity Ton 0.25 0.5 1 2 3 5 10
Radius Meter 3~10 3~10 3~10 3~10 3~10 3~10 3~10
Lifting height Meter 3~15 3~15 3~15 3~15 3~15 3~15 3~15
Rotation Degree 360 360 360 360 360 360 360
Lifting speed M/min 8 8 8 8 8 8 7
Cross travel speed M/min 20 20 20 20 20 20 20
Rotation speed M/min 0.7 0.7 0.7 0.7 0.6 0.6 0.6
Control model Pendant control or remote control



Please note: Above specification just for your reference,our crane can be customized design based on your requirements.
